    S Type Load Cell

    Rudrra Sensor has been delivering world class S Type Load Cell to the client at most competitive price. This S shape product is versatile and rugged constructed which widely applicable for weighing and tension measurement, industrial automation and various research applications. This product is available as S Beam Load Cell (RSL 301) in our product category. Generally, these are available in 5kg to 5,000 kg capacities with custom design & technology. This environment-friendly product is tested on various quality parameters to ensure its performance. Its excellence design and overloading capacity make it more popular in the market. Our products are designed to provide reliable and years of dependable performance.

    These S Type Load Cells are manufactured using supreme quality raw material which give accurate and error free result. Our decade of the year experience aids us to design user-friendly products at their budget. These types of load cells are widely used for non commercial purpose like industrial process control. Further this, they are also suitable for testing tasks like quality, material testing and also in research laboratories. We have developed state-of-the-art-manufacturing unit at our plant located at Ahmedabad to create a complete range of S shape load cell.

  • Applications

    • Crane scales and hanging scales
    • Small hopper and tank weighing systems
    • Hybrid systems with lever work
    • Belt weighers and other load carriers with multiple load cells

  • Diagram

    S Type Load Cell - Diagram

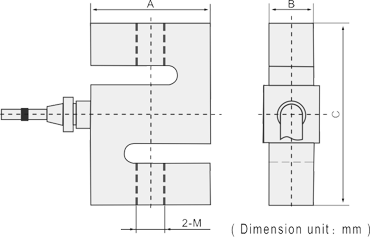

    Dimentions

    S Type Load Cell - Dimentions

    CAPACITY A B C M
    301 10~50kg 51 12.7 64 M8
    100~500kg 51 19 76 M12 x 1.75
    1000kg 50.8 25.4 76 M12 x 1.75
    2000~5000kg 76.2 25.4 108 M18 x 1.5
    301A 100~1000kg 51 19 76 M12 x 1.25
    1500~5000kg 76 28 100 M20 x 1.50

  • Features

    • Wide range of capacities from 5 kg to 5 000 kg
    • Alloy steel construction
    • Environmental Protection IP67
    • Bi-direction (tension and compression)

  • Dimenstions

    Related Load (kg.) 5, 10, 15, 20, 50, 100, 200, 300, 500, 1T, 2T, 3T, 5T
    PrecisionC2 Excitation Voltage (V)9~12 (DC)
    Composition Error± 0.03 Compensated temp. Range (°C)-10~+40
    Rated Output (mv/v)2.0 ± 0.004 & 3.0 ± 0.004 Use Temp. Range (°C)-10~+55
    Creep (%FS/30min)± 0.024 Temp. Effect on Zero (%FS/10°C)± 0.023
    Zero Balance (%FS)1.0 Temp. Effect on Span (%FS/10°C)± 0.017
    Input Resistance (Ω)390 ± 10 Safe Overload (%FS)150
    Output Resistance (Ω)350 ± 2 Ultimate Overload (%FS)200
    Insulation Resistance (MΩ)5000 Defend GradeIP66
