    Rope Tension Load Cell

    Security, authenticity and feature are predominant in the equipment industries. Our Rope tension load cell layout achieve the paramount standards including ISO9001:2008. We manufacture Rope tension and product offers dynamic, load monitoring, weighing and force measurement solution and high accuracy with planetory specifications and we are leading in this spectrum.

    Our Rope tension load cell is very easy to install. Theadaptation would be apt to calculate the load on one rope of the total number of ropes of the crane.The productivity from the load cell is equivqlent to the load enforced is processed and spectacle digitally in the indicator welcome in crane control cabin.These dangling scales are available in capacities ranging from 0.5Tf to over 0.7Tf. The characteristics of electronic device capacity, size and safety ingredient is also feasible upon request. Each tension load cell is temperature compensate and environmentally sealed.

  • Applications

    • Elevator load monitor.
    • Specially designed for protecting cranes and hoists from overload.
    • Tension measurement in stay ropes, suspension ropes and railway catenary ropes.
    • Vehicle pull test.
    • Ship Bollard pull test.

  • Diagram

    Rope Tension Load Cell - Diagram

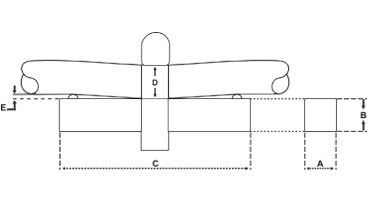

    Dimentions

    Rope Tension Load Cell - Dimentions

    • ROPE Tension Capacity d A B C E
    1,2,5 0.5 T
    		 8-16
    		 32
    		 32 172
    		 7.5
    5,10 1T
    		 24-36 32
    		 32 172 7.5
    15
    		 2 T
    		 upto 40 32
    		 32 172 7.5
    25
    		 3 T
    		 upto 60
    		 38
    		 38
    		 228
    		 7.5
    40
    		 5 T
    		 upto 72
    		 38
    		 38
    		 228
    		 7.5
    50
    		 7.5 T
    		 upto 80
    		 50
    		 50
    		 300
    		 7.5

  • Features

    • 0.5 Tf to 7.5 Tf capacities load cells are offered for rope tension ranging from 1Tf to 50Tf
    • Complete environmental protection IP-65 class
    • Standard output 1.0 mV/V available
    • Can be provided to accomodate multirope applications - up to 4 ropes

  • Dimenstions

    Standard Capacities (Tf.) 0.5,1,2,3,4,5,7.5 Insulation Resistance (50V) >1000 Mega Ohms
    Excitation Voltage 10 VDC - Maximum 15VDC Cable Length (4 core) Upto 2T-5 M, Above 2T-10M
    Nominal Output 1 mV/V Safe Overload150% of Rated Capacity
    Non-Linearity <±5.0% FSO for range upto 20% Ultimate Overload300% of Rated Capacity
    <±2.0% FSO for range above 20% 0 Temp. Compensated Range0-60 °C
    Hysteresis <±0.1% FSO (Full Scale Output) 0 Temp. Effect on Output <0.005 % FSO/C
    Non-Repeatability <±0.1% FSO 0 Temp. Effect on Zero <Â0.005 % FSO/C
    Creep (30 minutes) <±0.03 % FSO Deflection <0.5 mm at FSO
    Input Resistance 390 Ohms Material of ConstructionTool Steel
    Output Resistance 350 Ohms Environmental Protection ClassIP67
