    Web Tension Load Cell

    Rudrra Sensor manufactured web tension load cell. Our high quality load cell provides exceptional and long lasting performance. This model can be modified as per different capacities. We offer our all products at market leading prices. Our products and our company always appreciated in the market due to our quality and better customer satisfaction.

    This Model is popularly known as Rotogravure Load Cell offered by us as RSL. This load cell is applicable in printing machinery. We made this product under dynamic supervision of our qualified professionals.

  • Applications

    • Web tension control application
    • Rotogravure printing machine
    • Textile machines

  • Diagram

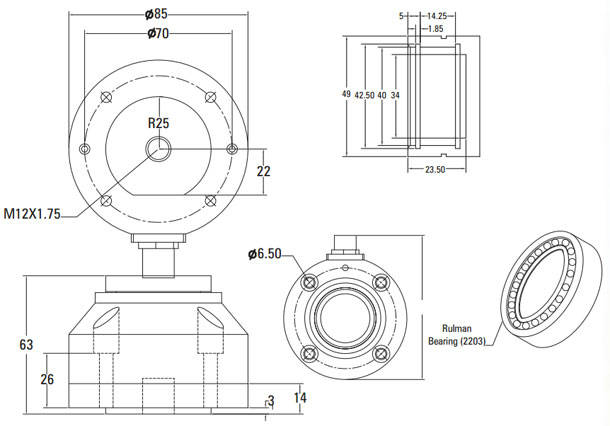

    Web Tension Load Cell - Diagram

  • Features

    • Large Capacity Range
    • Anodized aluminum alloy
    • Special Shielded cable
    • Connector output of detachable mic.
    • Designed for web tension applications

  • Dimenstions

    Type RS Accuracy class0,5%F.S
    Capacity (Emax) 25,50,100 Kg Minimum dead load0% R.O
    Rated output R.O2,0 mV/V Zero balance1 %R.O
    Temperature effect on zero< 0,014%R.O/5°C Temperature effect on output< 0,010%R.O/5°C
    Compensated temperature range-10 /+40 °C Temperature range safe-30 /+70 °C
    Maximum safe central overload150 %R.O Ultimate central overload300 %R.O
    Excitation5 V Input impedance395±30Ω
    Output impedance350±3Ω Insulation resistance>5000 MΩ
    Construction Anodized aluminiumalloy Environmental protection>IP55
    Cable type2x2x0,22 mm Cable length 3 m
    Weight0,9 kg Excitation + Green        - Black
    Reccommended bearing No. 2203 Signal + White           - Red
