    Shackle Type Load Cell

    RSL 305 is one of the most used and demanded product which is known as Shackle Type Load Cell. They are highly applicable in weighing and testing applications in various industries. It is a strain gauge based product which is specially designed for durable performance. Every product is tested on advanced and high tech machineries before delivery. Our range is simple to install and available for different capacity application. These user-friendly items are offered in standard as well as customized sizes and designs as per applications. We also provide a high temperature version of this product on request of the client.

    Our organization provides a comprehensive range of Shackle Type Load Cells including different capacity range. We offer them in a range of 1 tonne to 20 tones. Our engineer understands the different requirement of customers and they work closely and co-ordinate manner to fulfill their need in appropriate time. Buyers can avail entire range of product at market leading prices.

  • Applications

    • Bollard Pull Test Dynamometer
    • Bridge Rope Tension Measurement
    • Cargo Handling in Ship Yards, Lifting Equipment
    • Rope Tension Measurement
    • Tow Bar Connection Vehicle Pull Test
    • Winch Pull Force Measurement

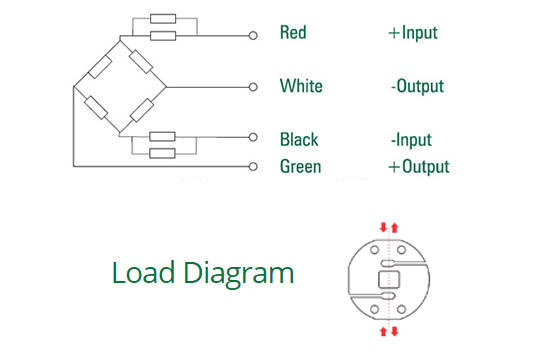

  • Diagram

    Shackle Type Load Cell - Diagram

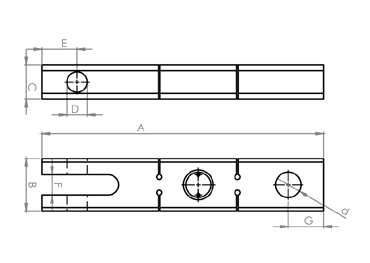

    Dimentions

    Shackle Type Load Cell - Dimentions


    Capacity A B C D d F E G
    1T,2T,3T 260 50 40 25 26 30 22 30
    5T 360 67 44 26 32.5 45 26 45
    10T 390 75 52 36 40 45 30 45
    20T 430 120 70 45 60 60 60 60
    50T 600 170 120 85 85 100 80 90

  • Features

    • 5T to 0-200 T capacities are available.
    • Load cell is compact and light weight
    • Alloy tool steel construction
    • Tension loading is applied through a pair of shackles.

  • Parameters

    Related Load (Ton) 1 / 1.5 / 2 / 5 / 7.5 / 10 / 20
    Precision    C1 Excitation Voltage (V)    5~12 (VDC)
    Composition Error±    ±0.03 Compensated temp. Range(°C)   -10~+40
    Rated Output (mv/v)   1.0 ± 0.001 Use Temp. Range(°C)    -10~+40
    Creep (%FS/30min)   ± 0.03 Temp. Effect on Zero (%FS/10°C)   ± 0.023
    Zero Balance (%FS)   1.0 Temp. Effect on Span (%FS/10°C)   ± 0.017
    Input Resistance (Ω)    390 ± 10 Safe Overload (%FS)   150
    Output Resistance (Ω)   350 ± 2 Ultimate Overload (%FS)   200
    Insulation Resistance (MΩ)    >20000M Defend Grade   IP66
