  • Weighbridge Load CellDownload

    Rudrra Senor is the well-known manufacturer, supplier & exporter of Weighbridge Load Cell (RSL 110B) which is appreciated for being highly innovative globally. The extremely rigid construction coupled with the most defining design, the advanced load cell has carved unique niche in the market.

    Built with high grade alloy steel as well as stainless steel raw materials, the superior weighbridge load cell very durable. The tensile strength assists it in remaining at the top quality for long. The precision finish endows it the much needed elegance.

    With an eye to matching every industrial demand, the standard load cell features plethora of different models. In addition, it is developed on the basis of particular demands as well. Created as per global standard, it provides best output under testing conditions.

  • Applications

    • Tank weighing
    • Hopper weighing
    • Tension testing machineries
    • Hanging scale

  • Diagram

    Weighbridge Load Cell - Diagram

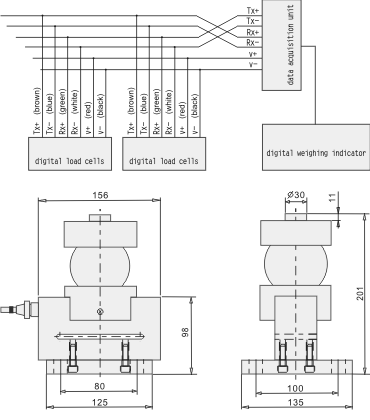

    Dimentions

    Weighbridge Load Cell- Dimentions

  • Features

    • Extremely rigid construction
    • Anti-corrosion
    • Tensile strength
    • Precision finish
    • Easy installation

  • Parameters: (Analog Load Cell)

    Related Load (Ton) 10 / 20 / 30
    Precision C2 & C3
    Composition Error ± 0.03 & ± 0.02
    Rated Output (mv/v) 2.0 ± 0.002
    Creep (%FS/30min) 0.023 / 0.016
    Zero Balance (%FS) ± 1.5
    Input Resistance (Ω) 700 ± 10
    Output Resistance (Ω) 750 ± 5
    Insulation Resistance(MΩ) ≥5000(100VDC)
    Excitation Voltage (V) 9~12 (DC)
    Compensated temp. Range (°C) -10~+40
    Use Temp. Range (°C) -20~+55
    Temp. Effect on Zero (°C) 0.017 / 0.011
    Temp. Effect on Span (°C) 0.029 / 0.019
    Safe Overload (%FS) 120
    Ultimate Overload (%FS) 150
    Defend Grade IP66 / IP68

    Parameters: (Digital Load Cell)

    Related Load (Ton) 10 / 20 / 30
    Precision C3
    Composition Error ± 0.02
    Rated Output (mv/v) 1,000.000 Counts
    Creep (%FS/10min) 0.02
    Excitation Voltage (V) 5.5~12 (DC)
    Compensated temp. Range (°C) -10~+40
    Use Temp. Range (°C) -20~+60
    Temp. Effect on Zero (°C) 0.019
    Temp. Effect on Span (°C) 0.011
    Safe Overload (%FS) 150
    Defend Grade IP67
    A/D Module Resolution 1.000.00
    Communication BPS 9600
    Communication Port 485/4 Cable
    Digital Reburfishing Frequency 10~80 / S
    Maximum of Verification scale Intervals 5000 n max
    Max. Communication Range 1200 m
    No. of Address Bus 32
