  • Stainless Steel Load Cell Download

    stainless-steel load cell

    Owing to vast experience and knowledge, we have been able to manufacture a supreme range of Stainless Steel Load Cell. These are ideally suitable for single as well as multiple load cell tension applications in various different industries as per their applications. These are strain gauge based sensor which is able to bear temperature 0 to 60° C. Our expert engineers create this model RSL 810 using modern production technique so that product can match with customer need. Our offered equipments are worldwide popular for its smooth operation and accurate measurement. These can be customized in various designs and sizes as per industrial need.

    These load cells are made from quality stainless steel and approved by our expert quality analyst and these are basically used in weighing applications. We offer them in different forms such as treaded and T-end versions. These load cells are also used for tension and compression force measurement. With our wide distribution network we are supplying our products in all India and across the nation at reasonable price.

  • Applications

    • Construction machine
    • Conveyor Belt Weighing
    • Platform Scale
    • Steel Weigher

  • Diagram

    Stainless Steel Load Cell - diagram

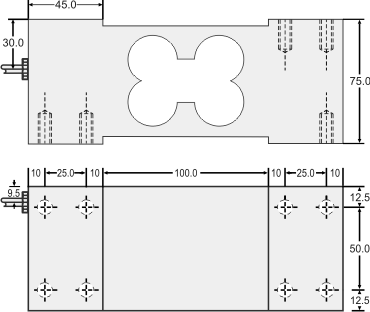

    Dimentions

    Stainless Steel Load Cell - dimensions

  • Features

    • Accurate over vide operating temp.0-50Deg.C.
    • Electro less nickel plated tool steel for industrial corrosion resistance.
    • Moisture proof sealing is provided for humid applications.
    • Low eccentric load sensitivity for 1Mtr.X 1Mtr.platform.
    • Very rugged for heavy shock loads.

  • Dimenstions

    Related Load (kg.) 300, 500, 750, 1000, 1500, 2000, 3000
    PrecisionC2 / C3 Insulation Resistance(MΩ)≥2000(100VDC)
    Composition Error0.03 / 0.02 Excitation Voltage (V)10~15 (DC)
    Rated Output (mv/v)2 ± 10% Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.025 Use Temp. Range (°C)-20~+60
    Hysteresis (%FS)0.01 Temp. Effect on Zero (%FS/10°C)0.0020
    Repeatability (%FS)0.02 / 0.01 Temp. Effect on Span (%FS/10°C)0.0015
    Creep (%FS/30min)0.03 / 0.02 Safe Overload (%FS)150
    Zero Balance (%FS)± 1.0 Ultimate Overload (%FS)250
    Input Resistance (Ω)400 ± 10 Defend GradeIP65
    Output Resistance (Ω)350 ± 2 Cable6mm, 5mtr
