    Platform Load Cell

    Platform Load Cell is the perfect solution for verity of weighing functions like small and medium size platform scale. Basically, it supports 750 x 750 mm sized platforms. These are manufactured from quality stainless steel at our ultra-modern production unit. By keeping the mind the diverse need of the customers, we are offering this product as RSL 310, so buyer can choose perfect as their applications. We offer them with different capacities ranging from 75 kg to 500 kg These fabricated under the superb guidance of our expert engineers who believe in quality products. We are also active in all customization solution whether it is size or designs, all are developed as per industrial need.

    These Platform Load Cells are produced for eccentric load sensitivity which finds different applications like steel weighers and large platform scale. This low profile designed product is widely known for various unmatched features like compact design and light weight. Our product is made as per international norms and used in various industries and laboratories for measuring purposes.

  • Applications

    • Bag Weighing Machine, Check Weighing
    • Conveyor Belt Weighing
    • Bench Scale, Counting Scale, Platform Scale
    • Small Bagging Machines

  • Diagram

    Platform Load Cell - Diagram

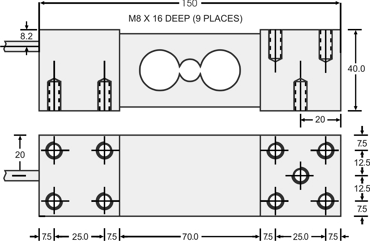

    Dimentions

    Platform Load Cell - Dimensions

  • Features

    • Tool Steel construction for harsh application.
    • It is compact, light weight and economical.
    • IP 65 degree of protection class for environmental protection
    • Suitable for platform size 600*600mm

  • Dimenstions

    Related Load (kg.) 75, 100, 150, 200, 250, 300, 500
    PrecisionC2 / C3 Insulation Resistance(MΩ)≥2000(100VDC)
    Composition Error0.03 / 0.02 Excitation Voltage (V)10~15 (DC)
    Rated Output (mv/v)2 ± 10% Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.025 Use Temp. Range (°C)-20~+60
    Hysteresis (%FS)0.01 Temp. Effect on Zero (%FS/10°C)0.0020
    Repeatability (%FS)0.02 / 0.01 Temp. Effect on Span (%FS/10°C)0.0015
    Creep (%FS/30min)0.03 / 0.02 Safe Overload (%FS)150
    Zero Balance (%FS)± 1.0 Ultimate Overload (%FS)250
    Input Resistance (Ω)400 ± 10 Defend GradeIP65
    Output Resistance (Ω)350 ± 2 Cable6mm, 2.5mtr
