Double Ended Shear Beam Load CellDownload
Rudrra Sensor is admired for manufacturing most innovative range of Double Ended Shear Beam Load Cell (RSL 110) in the global market. With excellent alloy steel construction, it is highly dominant; exhibiting incomparable performance.
With both glue sealing and welded sealing, it is the hallmark of superiority in every aspect. Thanks largely to the compact structure; it is comparatively more durable than other ordinary products.
The futuristic shear beam load cell is nickel plated, waterproof and anti-corrosion. It is perfectly suitable for electronic truck scale.
The highly advanced load cell comes in multiple designs and models. Furthermore, it is created on demand as well. Being the most appreciated supplier and exporter of ultra-modern load cell, we make sure our products not only stand tall on every quality but also define the standard in both national and international market.
-
Applications
- Electronic truck scale
- Hanging
- Hopper weighing
- Tank level
-
Diagram

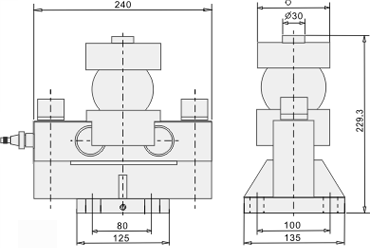

Dimentions
-
Features
- Wide range of capacities from 100kg to 10000kg
- Alloy steel construction
- Environmental Protection IP68 with complete hermetic sealing
- Calibration in mV/V
- Low profile design
-
Parameters: (Analog Load Cell)
Related Load (Ton) 10 / 20 / 30 / 40 Precision C2 & C3 Composition Error ± 0.03 & ± 0.02 Rated Output 2.0 ± 0.002 Creep (%FS/30min) 0.023 / 0.016 Zero Balance (%FS) ± 1.5 Input Resistance (Ω) 700 ± 10 Output Resistance (Ω) 750 ± 5 Insulation Resistance(MΩ) ≥5000(100VDC) Excitation Voltage (V) 9~12 (DC) Compensated temp. Range (°C) -10~+40 Use Temp. Range (°C) -20~+55 Temp. Effect on Zero (%FS/10°C) 0.017 / 0.011 Temp. Effect on Span (%FS/10°C) 0.029 / 0.019 Safe Overload (%FS) 120 Ultimate Overload (%FS) 150 Defend Grade IP66 / IP68
Parameters: (Digital Load Cell)
Related Load (Ton) 10 / 20 / 30 / 40 Precision C3 Composition Error ± 0.02 Rated Output 1,000.000 Counts Creep (%FS/10min) 0.02 Excitation Voltage (V) 5.5~12 (DC) Compensated temp. Range (°C) -10~+40 Use Temp. Range (°C) -20~+60 Temp. Effect on Zero (%FS/10°C) 0.019 Temp. Effect on Span (%FS/10°C) 0.011 Safe Overload (%FS) 150 Defend Grade IP67 A/D Module Resolution 1.000.00 Communication BPS 9600 Communication Port 485/4 Cable Digital Reburfishing Frequency 10~80 / S Maximum of Verification scale Intervals 5000 n max Max. Communication Range 1200 m No. of Address Bus 32
