    Crane Scale Load Cell

    As the foremost manufacturer, supplier and exporter of most advanced Load Cells, Rudrra Sensor makes sure it successfully caters all the various industrial requirements---big or small---with utmost perfection. The Crane Scale Load Cell has been made keeping certain industries, where low capacity load cells are used, in mind.

    Alloy steel and stainless steel materials have been used to have a rigid construction that is fully capable of resisting against any unwanted shock or overload. Moreover, it has enough tensile strength to beat other similar products in the market with regard to longevity.

    The lightweight and portable design ensures users don’t have any inconvenience in carrying it from one place to another. The availability of both standard and customized solutions offer just the complete freedom of picking up the best product a client would want to have.

  • Applications

    • Hanging as well as crane scale
    • Force measurement
    • Material handling equipments

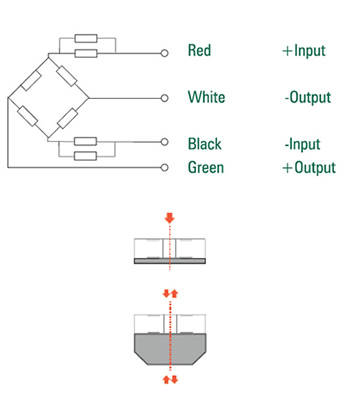

  • Diagram

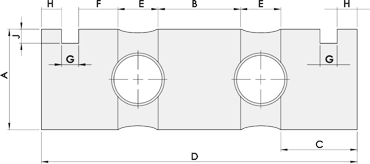

    Crane Scale Load Cell - Diagram Crane Scale Load Cell - Dimentions

    Dimentions

    Crane Scale Load Cell - Dimentions

    Capacity A B C D E F G H J
    500 KG TO 1T 25 19 19 81 12 6.5 6.5 6 4.5
    3T,5T 35 31 23.5 110 16 10 6.5 7 6
    10T 50 41 38 157 20 19.5 8.5 10 7
    20T 65 66 39 192 24 20.5 8.5 10 9.5
    30T 75 76 50.5 225 24 28 10.5 12 10.5
    50T 85 91 58.5 260 26 36 10.5 12 12
    100T 100 100 76 328 38 53.5 10.5 12 14

  • Features

    • Lightweight & portable design
    • Rigid built-up
    • Resist against shock and overload
    • Long lasting

  • Dimenstions

    Related Load (kg.) 500, 1000, 3T,5T,10T,15T,20T,30T,50T,100T
    Precision    C1 Insulation Resistance(MΩ)≥5000(100VDC)
    Composition Error0.05 Excitation Voltage (V)10~15 (DC)
    Rated Output (mv/v)1.0 ± 0.003 Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.025 Use Temp. Range (°C)-20~+60
    Hysteresis (%FS)0.02 Temp. Effect on Zero (%FS/10°C)0.03
    Repeatability (%FS)0.02 / 0.01 Temp. Effect on Span (%FS/10°C)0.03
    Creep (%FS/30min)0.03 / 0.05 Safe Overload (%FS)150
    Zero Balance (%FS)± 1.0 Ultimate Overload (%FS)250
    Input Resistance (Ω)700 ± 10 Defend GradeIP65
    Output Resistance (Ω)700 ± 2 Cable6mm, 5mtr
