    Column Type Load Cell

    Column Type Load Cell (RS 3) has several highly advanced, user-friendly and supremely convenient features that make it an indispensable tool in various weight checking applications..

    Making sure the load cell is powerful enough to excel in harsh applications, it has been developed using universally accepted high grade stainless steel. The extra-ordinarily construction is robust enough to endure any overload. It is made to safeguard itself from any environmental damage, rust, corrosion or abrasion.

    The RS 3 model has been hermetically welded and perfectly sealed to IP68. With the mounting accessories, it is installed with optimum ease. There is no inconvenience in its removal.

    The self-centering column design not only enhances its appearance but also makes for a more comfortable use. With the ability to last long, the load cell vindicates its claim as the most reliable brand.

  • Diagram

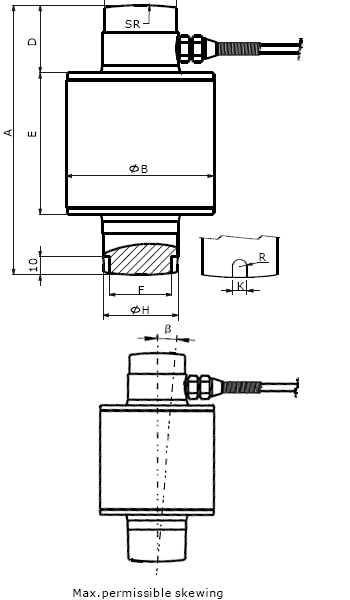

    Compression Load Cell - Diagram Compression Load Cell - Dimentions

    Dimentions



  • Capacity/Size A B C D E F H K SR
    10 ̴30t 150 82 40 38 82 34.7 41.7 8 150
    40 ̴60t 170 88 53 47 95 43 53 10 200

  • Features

    • Designed for Harsh Application
    • Hermetically welded and perfectly sealed to IP68
    • Excel in harsh applications
    • Self-centering column design
    • Almost maintenance free

  • Dimenstions

    Item/Parameter

    C3

    Unit

    Rated load (Ton):

    10,20,30,40,50,60

    t

    Maximal numbers of load cell verification
    Intervals (NIc):

    3000

    d

    Minimum load cell Verification intervals
    Intervals (Vmin):

    0.01

    % of rated load

    Rated output (Cn):

    2.0 ± 0.1%

    mV/V

    *Combined error:

    0.015

    ± % of rated output

    Temperature effect on sensitivity (Tkc):

    0.0012

    ± % of rated output°C

    Temperature effect on zero balance (Tk0):

    0.0008

    ± % of rated output°C

    Zero balance:

    1.0

    ± % of rated output

    Input balance:

    775 ± 5

    Ω (Ohms)

    Output resistance (Ro):

    702 ± 2

    Ω (Ohms)

    Insulation resistance:

    ≥ 5000

    M Ω (Mega-Ohms)

    Safe overload:

    150

    ± % of rated capability

    Ultimate overload:

    300

    ± % of rated capability

    Operating temperature range:

    -20  ̴+70/-20  ̴+160

    °C / °F

    Recommend excitation:

    8  ̴15

    V(DC or AC)

    Maximum excitation:

    24

    V(DC or AC)

    Material of elastomer:

    Stainless Steel



    Protection class:

    IP67/IP68
