    bending beam load cell

    Rudrra Sensor manufactures Bending Beam Load Cell using standard grade stainless steel and offers them in a verity of design and sizes. Specially designed for weighing platform, these are available with different load capacity. Our supplied components are widely suitable for industrial measurement purpose like harsh and hygienic applications. All products are tested on various quality parameters to ensure its error free measurement performance. As every day new technology comes and this requires changes in design, size and other parameters. But we look always in front of this because we have all latest and modern technology and expert in customization. Our load cells easy to install and you can enjoy the maximum benefits of this at low price.

    We offer this stainless steel bending beam load cell with model name as RSL 410. It supports pan size up to 750 x750 mm. It widely demanded in the market due to providing minimum error for off centre loading. With our wide distribution network, our products are supplying in all over India and across the nation at market leading rates. Our products always show its appearance in the market by their high quality services.

  • Applications

    • Bag Weighing Machine
    • Conveyor Belt Weighing
    • Low Profile Floor Scale Platform Scale

  • Diagram

    bending beam load cell - diagram

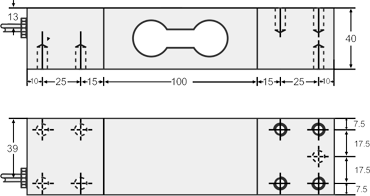

    Dimentions

    bending beam load cell -dimensions

  • Features

    • Wide range of capacities from 100 kg to 15 00 kg
    • Supports 750 mm x 750 mm size platform.
    • Suitable for large platform construction.

  • Dimenstions

    Related Load (kg.) 100, 200, 300, 500, 750, 1000, 1500
    PrecisionC2 / C3 Insulation Resistance(MΩ)≥2000(100VDC)
    Composition Error0.03 / 0.02 Excitation Voltage (V)10~15 (DC)
    Rated Output (mv/v)2 ± 10% Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.025 Use Temp. Range (°C)-20~+60
    Hysteresis (%FS)0.01 Temp. Effect on Zero (%FS/10°C)0.0020
    Repeatability (%FS)0.02 / 0.01 Temp. Effect on Span (%FS/10°C)0.0015
    Creep (%FS/30min)0.03 Safe Overload (%FS)150
    Zero Balance (%FS)± 1.0 Ultimate Overload (%FS)250
    Input Resistance (Ω)400 ± 10 Defend GradeIP65
    Output Resistance (Ω)350 ± 2 Cable6mm, 3mtr
