  • Bench Scale Load Cell (RSL 601 AC)Download

    Bench Scale Load Cell

    Rudrra Sensor manufactures, supplies & exports most comprehensive assortment of Bench Scale Load Cells (RSL 601 AC). Developed to offer ultimate solution with utmost convenience, the futuristic load cell has an admirable name in the industry due only to the trusted performance.

    With the premium hard grade materials and the unique design in accordance with the industrial needs, the advanced bench scale load cell is extremely user friendly. The ultra-rigid construction is the key to its praiseworthy longevity.

    It is colorless anodized and glue sealed. It comes with single point off center load measuring technology. It is installed with utmost ease.

    The wide variety of options ensures that clients are able to handpick the suited products. Furthermore, it is also prepared based on the specifications offered by the clients as well.

  • Applications

    • Check weighing applications (suggested platform size 400 X 400)
    • Bench counting as well as posting scales

  • Diagram

    Bench Scale Load Cell - diagram

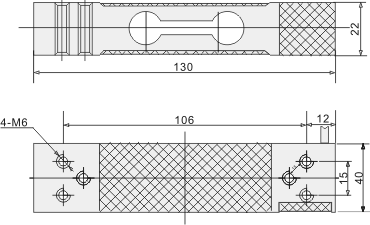

    Dimentions

    Bench Scale Load Cell- dimensions

  • Features

    • Colorless anodized
    • Premium hard grade materials
    • Ultra-rigid construction
    • Point off center load measuring technology

  • Dimenstions

    Related Load (kg.) 50, 60, 80, 120, 150,200
    Precision C2 / C3 Insulation Resistance(MΩ)≥5000(100VDC)
    Composition Error0.03 / 0.02 Excitation Voltage (V)9~12 (DC)
    Rated Output (mv/v)2 ± 5 Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-35~+65
    Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.03 / 0.017
    Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.03 / 0.017
    Creep (%FS/30min)0.02 Safe Overload (%FS)120
    Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
    Input Resistance (Ω)400 ± 10 Defend GradeIP65
    Output Resistance (Ω)350 ± 2 Cable4mm, 2mtr
