    Bellow Type Load Cell

    Rudrra Sensor has developed a premium range of Bellow Type Load Cell made from high strength aluminum alloy body. We have developed state-of-the-art-manufacturing infrastructure to produce high quality products. We offer this item under the model name RSL 910 to our customers. We develop both standard as well as customized designs to fulfill the diverse need of different industry. These are also available in different capacities ranging from 10kg to 500 kg and overloading bearing function. Weighing machines and large profile scales are some of application where this product is widely used.

    Our organization has a professionally expert quality analyst that checks every component at different parameters along with laboratory test. These Bellow Type Load Cells are easy to install and give error free measurement result. They are designed in a way that they can work in multi-environments. We regular update our machine and technology so that we provide user-friendly load cells.

  • Applications

    • Platform scales
    • Bench scales
    • Conveyor scales
    • Small hopper and tank weighing systems
    • Bagging machines and other similar systems

  • Diagram

    Bellow Type Load Cell - Diagram

    Dimentions

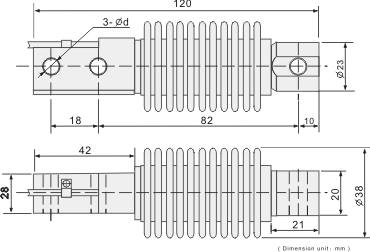

    Bellow Type Load Cell - Dimensions

  • Features

    • Wide range of capacities from 10 kg to 500 kg
    • Stainless steel construction
    • Environmental Protection IP68 with complete hermetic sealing
    • Calibration in mV/V/Ω

  • Dimenstions

    Related Load (Kg) 10, 20, 30, 50, 100, 200, 300, 350, 500
    Precision C3 Insulation Resistance(M Ω)≥5000(100VDC)
    Composition Error± 0.02 Excitation Voltage (V)9~12 (DC)
    Rated Output (mv/v)3 ± 0.002 Compensated temp. Range (°C)-10~+40
    Non-Linearity (%FS)0.03 / 0.017 Use Temp. Range (°C)-20~+55
    Hysteresis (%FS)0.03 / 0.02 Temp. Effect on Zero (%FS/10°C)0.019
    Repeatability (%FS)0.01 Temp. Effect on Span (%FS/10°C)0.011
    Creep (%FS/30min)0.016 Safe Overload (%FS)120
    Zero Balance (%FS)± 1 Ultimate Overload (%FS)150
    Input Resistance (Ω)350 ± 5 Defend GradeIP68
    Output Resistance (Ω)350 ± 3 Cable4mm, 3mtr
